Gasketed vs Brazed vs Welded Heat Exchangers

For clean, low-pressure, and serviceable duties, a gasketed plate heat exchanger is the best choice. For compact, high-pressure, low-charge applications such as refrigeration, a brazed plate heat exchanger is preferred. For aggressive fluids, high temperatures, or where gaskets cannot be used, a welded plate heat exchanger is the correct selection.

This guide explains the differences between gasketed, brazed, and welded heat exchangers, and how to choose the right type for your project. You will learn:

• The construction and working principles of each type

• Pressure, temperature, and material limits

• Serviceability, cleaning, and maintenance differences

• Selection logic, decision criteria, and application examples

• Common mistakes that lead to premature failure or unnecessary cost

• Cost, lead time, and certification factors for export projects

Quick Answer

Table of Contents

1. What Are Gasketed, Brazed, and Welded Heat Exchangers?

2. Gasketed vs Brazed vs Welded: Direct Comparison

3. How to Select the Right Type for Your Application

4. Pressure, Temperature, and Material Limits

5. Serviceability, Maintenance, and Cleaning

6. Common Applications and Selection Examples

7. Comparison Tables

8. Common Mistakes and How to Avoid Them

9. Cost, Lead Time, and Certification Factors

10. Pre-Purchase Checklist

11. FAQ

12. Key Takeaways

What Are Gasketed, Brazed, and Welded Heat Exchangers?

Gasketed, brazed, and welded heat exchangers are all plate-type heat exchangers, but they differ in how the plates are sealed and how the unit can be maintained. The sealing method determines pressure, temperature, serviceability, and fluid compatibility.

H3: Gasketed Plate Heat Exchanger (PHE)

A gasketed PHE uses elastomeric gaskets to seal the channels between plates. The plate pack is clamped between two frames, and the gaskets prevent fluid mixing and leakage.

• Plates: 316L, titanium, SMO 254

• Gaskets: NBR, EPDM, HNBR, FKM, PTFE-encapsulated

• Pressure: up to ~25 bar

• Temperature: up to ~200 °C (gasket limited)

• Serviceable: Yes, can open and clean or add plates

• Best for: Clean water, HVAC, district heating, food and beverage

H3: Brazed Plate Heat Exchanger (BPHE)

A brazed PHE uses a copper or nickel braze alloy to join the plates at every contact point, creating a sealed, compact unit with no gaskets.

• Plates: 316L stainless steel

• Braze: Copper (standard) or nickel (for ammonia and some CO₂)

• Pressure: 30–45 bar standard; higher for special designs

• Temperature: up to ~200 °C

• Serviceable: No; replaced on failure

• Best for: Refrigeration, heat pumps, CO₂ systems, data center cooling

H3: Welded Plate Heat Exchanger (WHE)

A welded PHE uses welding (laser, TIG, or resistance) to seal the plates, eliminating gaskets entirely. Some designs are fully welded; others are semi-welded with gaskets on one side.

• Plates: 316L, titanium, SMO 254, nickel alloys

• Pressure: 40–100 bar, depending on design

• Temperature: 400 °C+ with appropriate materials

• Serviceable: Partially; CIP or chemical cleaning, not mechanically openable

• Best for: Aggressive fluids, ammonia, high temperature, high pressure

H3: How Each Type Is Constructed

Gasketed vs Brazed vs Welded: Direct Comparison

The main differences between gasketed, brazed, and welded heat exchangers are pressure limits, temperature limits, serviceability, and cost. The table below summarizes the key parameters.

H3: Key Parameters Comparison

H3: Selection by Application

How to Select the Right Type for Your Application

Selecting the right type requires matching the exchanger to the duty, fluid, pressure, temperature, fouling, and maintenance requirements. Follow these steps.

Step 1 — Define the duty and fluids.
Calculate heat duty Q = ṁ × cp × ΔT. List fluid properties, including corrosivity and fouling tendency.

Step 2 — Check pressure and temperature limits.
If pressure > 25 bar or temperature > 200 °C, gasketed PHE is not suitable. Choose brazed or welded.

Step 3 — Evaluate fouling and cleaning needs.
If the fluid fouls and requires mechanical cleaning, choose gasketed PHE. If clean or CIP-cleanable, brazed or welded may work.

Step 4 — Consider material compatibility.
For seawater or chlorides, use titanium or SMO 254. For ammonia, avoid copper; use nickel-brazed or welded.

Step 5 — Assess cost and lead time.
Gasketed PHE is usually lowest cost. Brazed is low cost but not serviceable. Welded is higher cost but handles extreme conditions.

Step 6 — Verify certification requirements.
PED, ASME, marine class, or FDA may dictate construction and materials. Plan early.

Step 7 — Request vendor calculations.
Ask for thermal calculation, pressure drop check, and drawing for the selected type.

Pressure, Temperature, and Material Limits

Each type has distinct limits. Gasketed PHE is limited by gasket material; brazed PHE by braze alloy and plate thickness; welded PHE by weld integrity and base material.

H3: Pressure Limits

H3: Temperature Limits

H3: Material Selection for Each Type

H3: Gasket vs No Gasket: Implications

• Gasketed: Easier to clean and expand, but gasket limits temperature and chemical compatibility.

• Brazed: No gasket, compact, but not serviceable and limited to compatible fluids.

• Welded: No gasket, handles aggressive fluids and high temperature, but not mechanically cleanable.

Serviceability, Maintenance, and Cleaning

Serviceability is a major decision factor. Gasketed PHE can be opened, cleaned, and expanded. Brazed PHE is not serviceable. Welded PHE is partially serviceable through CIP or chemical cleaning.

H3: Gasketed PHE Maintenance

• Open frame, remove plates, clean individually

• Replace gaskets as needed

• Add plates to increase capacity

• CIP possible for light fouling

• Requires spare gaskets and trained personnel

H3: Brazed PHE Maintenance

• Not serviceable; replace on failure

• Requires good filtration and water treatment

• Cleaning only by chemical CIP if compatible

• Low maintenance but no repair option

H3: Welded PHE Maintenance

• CIP or chemical cleaning

• Some designs allow mechanical cleaning on one side

• No gaskets to replace

• Higher initial cost but longer life in aggressive service

H3: Cleaning Methods Compared

Common Applications and Selection Examples

The best type depends on the application. Here are typical selections for common industries.

H3: HVAC and District Heating

• Gasketed PHE: Chilled water, condenser water, district heating substations

• Reason: Clean fluids, close approach, serviceable, expandable

H3: Refrigeration and Heat Pumps

• Brazed PHE: Evaporators, condensers, economizers

• Reason: Compact, high pressure, low refrigerant charge

• Welded PHE: CO₂ and ammonia systems

• Reason: No gaskets, high pressure, aggressive fluids

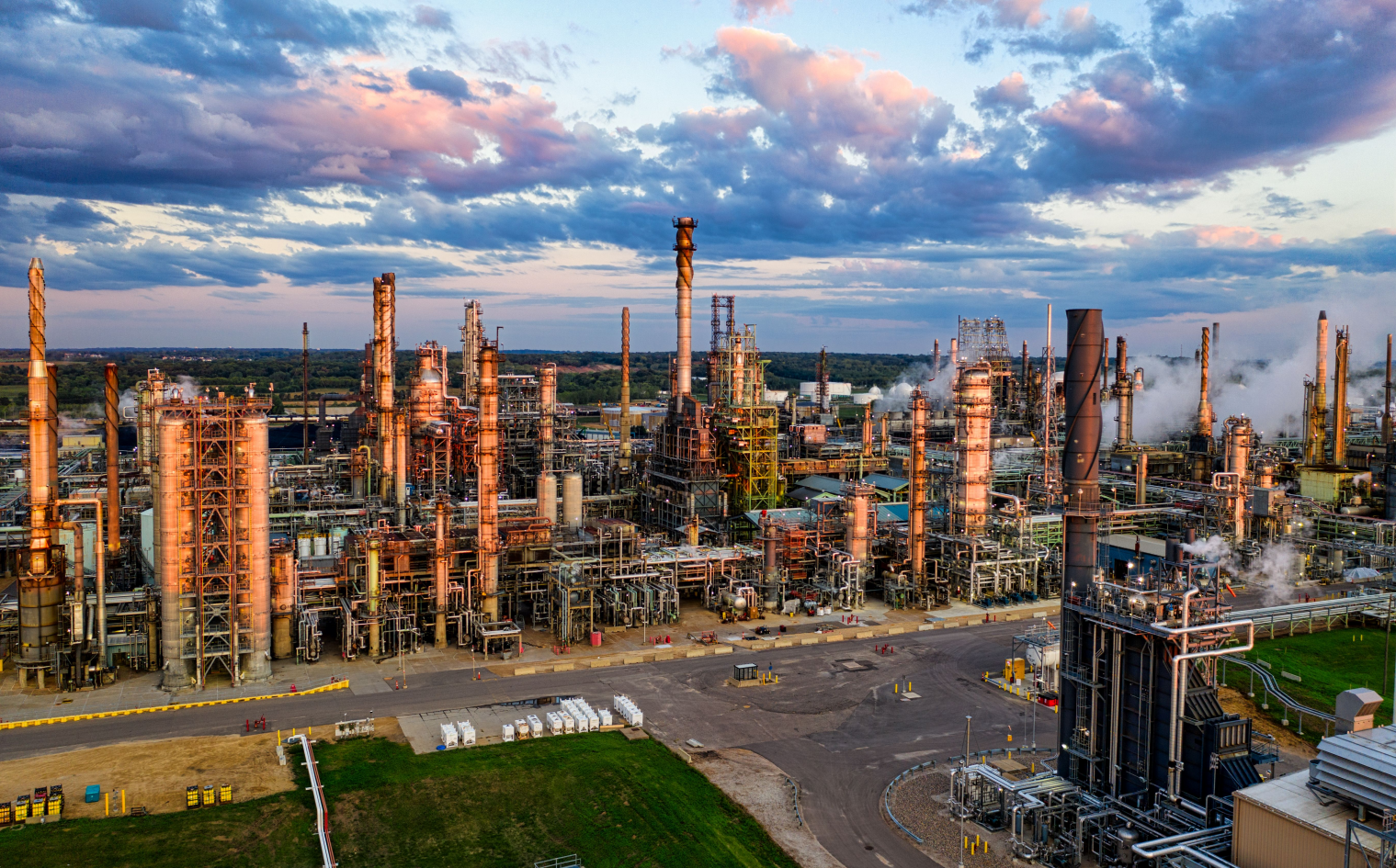

H3: Chemical and Petrochemical

• Welded PHE: Acids, solvents, high-temperature reactions

• Reason: No gasket compatibility issues, high temperature and pressure

H3: Food and Beverage

• Gasketed PHE: Pasteurization, CIP circuits, heating/cooling

• Reason: Cleanable, FDA-compliant materials, expandable

H3: Marine and Offshore

• Gasketed PHE (Ti): Seawater cooling, marine HVAC

• Welded PHE (Ti): High-pressure seawater systems

• Reason: Chloride resistance, compact, reliable

H3: Data Center and Energy Storage

• Brazed PHE: CDU, liquid cooling, battery cooling

• Reason: Compact, high heat flux, low charge

Comparison Tables

Table 1: Gasketed vs Brazed vs Welded — Full Comparison

Table 2: Application Selection Matrix

Common Mistakes and How to Avoid Them

1. Using gasketed PHE above 25 bar.
Gaskets extrude and leak. Use brazed or welded for higher pressure.

2. Selecting brazed PHE for fouling fluids.
Brazed units cannot be opened or mechanically cleaned. Use gasketed or welded with CIP.

3. Using copper-brazed PHE with ammonia.
Ammonia attacks copper. Use nickel-brazed or welded construction.

4. Ignoring gasket chemical compatibility.
Wrong gasket material fails early. Match gasket to fluid and temperature.

5. Choosing gasketed PHE for aggressive acids.
Gaskets and 316L may not resist. Use welded PHE with nickel alloys.

6. Forgetting expansion needs.
If future capacity increase is likely, choose gasketed PHE with spare frame capacity.

7. Overlooking certification requirements.
PED, ASME, or marine class may dictate construction type. Plan early.

8. Using brazed PHE for high-temperature steam.
Braze alloy softens above 200 °C. Use welded or gasketed with high-temp gasket.

9. Not planning for cleaning.
Even welded PHE may need CIP. Ensure cleaning method is compatible.

10. Buying on price alone.
Cheapest type may not meet pressure, temperature, or maintenance needs. Evaluate lifecycle cost.

Cost, Lead Time, and Certification Factors

Cost, lead time, and certification vary by type, material, and market. Gasketed PHE is usually lowest cost; welded PHE is highest but handles extreme conditions.

H3: Cost Drivers

H3: Lead Time Factors

H3: Certification Requirements by Market

Pre-Purchase Checklist

• □

  Heat duty and fluid properties confirmed

• □

  Design pressure and temperature defined

• □

  Allowable pressure drop specified

• □

  Fouling tendency assessed

• □

  Cleaning method determined

• □

  Type selected (gasketed, brazed, welded)

• □

  Material and gasket/braze selected

• □

  Expansion needs evaluated

• □

  Certification requirements identified

• □

  Footprint, weight, and access verified

• □

  Spare parts strategy defined

• □

  Vendor thermal calculation and drawing requested

• □

  Test certificates and traceability confirmed

• □

  Lead time and delivery terms agreed

FAQ

1. What is the difference between gasketed, brazed, and welded heat exchangers?
Gasketed uses rubber gaskets to seal plates; brazed uses a copper or nickel braze alloy; welded uses welds. Gasketed is serviceable and expandable, brazed is compact and not serviceable, welded handles high pressure and aggressive fluids.

2. Which type is best for refrigeration?
Brazed plate heat exchangers are best for most refrigeration duties because they are compact, handle high pressure, and use low refrigerant charge. Welded PHE is used for CO₂ and ammonia.

3. Can I use a gasketed PHE for seawater?
Yes, with titanium plates and EPDM gaskets. Titanium resists chloride pitting. Avoid 316L in seawater.

4. What is the maximum pressure for a brazed plate heat exchanger?
Typically 30–45 bar, depending on plate thickness and braze material. Some special designs can go higher.

5. Can a welded heat exchanger be cleaned?
Yes, by CIP or chemical cleaning. Some designs allow mechanical cleaning on one side, but most are not openable.

6. Which type is best for ammonia?
Welded PHE or shell and tube. Never use copper-brazed PHE with ammonia. Nickel-brazed PHE is compatible.

7. Is a gasketed PHE expandable?
Yes, if the frame has spare capacity. You can add plates to increase heat transfer area.

8. What is the temperature limit for gasketed PHE?
Up to 200 °C with FKM or PTFE-encapsulated gaskets. Standard EPDM is limited to 150 °C.

9. Which type has the lowest refrigerant charge?
Brazed PHE has the lowest refrigerant charge due to its compact design and small internal volume.

10. How do I choose between brazed and welded for CO₂?
Brazed PHE can handle CO₂ up to 45 bar. For transcritical CO₂ with higher pressures, welded PHE is required.

11. What certifications are available for these heat exchangers?
PED, ASME, CRN, marine class (ABS, DNV, Lloyd’s), and food-grade certifications (FDA, 3-A, EHEDG) depending on application.

12. Can I repair a brazed plate heat exchanger?
No, brazed PHE is not serviceable. It must be replaced if it fails.

Key Takeaways

• Gasketed PHE is best for clean, low-pressure, serviceable, and expandable duties such as HVAC and district heating.

• Brazed PHE is best for compact, high-pressure, low-charge applications such as refrigeration and heat pumps.

• Welded PHE is best for aggressive fluids, high temperature, and high pressure where gaskets cannot be used.

• Pressure limits: gasketed ~25 bar, brazed 30–45 bar, welded 40–100 bar.

• Temperature limits: gasketed and brazed ~200 °C, welded 400 °C+.

• Serviceability: gasketed is fully serviceable; brazed is not; welded is partially serviceable.

• Material selection must match fluid: titanium for seawater, nickel braze for ammonia, 316L for clean water.

• Certification (PED, ASME, marine, FDA) affects construction, cost, and lead time — plan early.
