What Causes Heat Exchanger Fouling and How to Prevent It

Heat exchanger fouling is the accumulation of unwanted deposits on heat transfer surfaces, caused mainly by scaling, crystallization, particulate deposition, biological growth, corrosion products, and chemical reaction. It reduces the overall heat transfer coefficient (U), increases pressure drop, raises energy consumption, and can eventually force unplanned shutdowns.

This guide explains exactly why fouling happens, how to predict it, and how to prevent or manage it in plate heat exchangers and shell and tube units. You will learn:

• The six main fouling mechanisms and how each develops

• How fouling affects U-value, pressure drop, and operating cost

• Design and selection rules that reduce fouling risk

• Chemical and mechanical cleaning methods compared

• A step-by-step fouling prevention program

• Common mistakes that accelerate fouling

• Material, gasket, and maintenance decisions that extend service life

Quick Answer

Table of Contents

1. What Is Heat Exchanger Fouling?

2. The 6 Main Fouling Mechanisms

3. How Fouling Affects Performance and Cost

4. Fouling Factors: How to Select Them

5. Design and Selection Rules to Reduce Fouling

6. How to Prevent Fouling: Step-by-Step Program

7. Cleaning Methods Compared

8. Material and Gasket Selection for Fouling Service

9. Comparison Tables

10. Fouling Prevention Checklist

11. Common Mistakes and How to Avoid Them

12. FAQ

13. Key Takeaways

What Is Heat Exchanger Fouling?

Heat exchanger fouling is the buildup of deposits on heat transfer surfaces that creates an additional thermal resistance and restricts flow. It is measured as a fouling factor (Rf) in m²·K/W and included in the overall heat transfer coefficient calculation.

Formula:

1/Udirty = 1/Uclean + Rf

Where:

• Udirty = operating U after fouling

• Uclean = U with clean surfaces

• Rf = total fouling resistance (both sides)

Even a thin deposit layer can significantly reduce performance. For example, a 0.1 mm scale layer on a plate can cut U by 20–40%.

H3: Why Fouling Matters in Real Projects

• Energy cost: Lower U means higher flow or higher temperature difference to compensate

• Capacity loss: Fouled exchanger cannot meet design duty

• Pressure drop: Deposits narrow flow channels, raising ΔP and pump power

• Downtime: Cleaning stops production

• Replacement cost: Severe fouling shortens equipment life

• Safety: Overpressure, corrosion, and leaks can develop

The 6 Main Fouling Mechanisms

Fouling is not a single phenomenon. It develops through six distinct mechanisms, and each requires a different prevention strategy.

H3: 1. Crystallization (Scaling)

What it is: Dissolved salts precipitate onto hot surfaces when their solubility decreases with temperature.

Common examples:

• Calcium carbonate (CaCO₃) in cooling water

• Calcium sulfate (CaSO₄) in high-temperature service

• Silica in boiler and geothermal water

Why it happens:

• Temperature rise reduces solubility

• pH change shifts carbonate equilibrium

• Concentration exceeds saturation limit

Where it occurs most:

• Hot side of exchangers

• Cooling water circuits

• Steam condensers

• Boilers and evaporators

Prevention:

• Water softening or demineralization

• pH control (typically 7.5–8.5 for cooling water)

• Scale inhibitors (phosphonates, polymers)

• Limit surface temperature below scaling threshold

• Periodic acid cleaning (compatible with material)

H3: 2. Particulate Fouling (Deposition)

What it is: Suspended solids settle or deposit on heat transfer surfaces.

Common examples:

• Sand, silt, rust particles

• River water or raw water solids

• Process debris and fibers

• Corrosion products from piping

Why it happens:

• Low flow velocity allows settling

• Filtration is inadequate

• Upstream corrosion releases particles

• Dead zones or low-flow areas exist

Where it occurs most:

• Shell side of STHE (low velocity regions)

• Inlet areas of PHE

• Cooling water circuits

• Open-loop systems

Prevention:

• Install upstream filtration (50–200 micron depending on channel size)

• Maintain velocity above settling threshold (typically > 0.5 m/s in tubes, > 0.3 m/s in plates)

• Use wide-gap plates for dirty fluids

• Avoid dead zones in piping and exchanger design

• Flush systems before commissioning

H3: 3. Biological Fouling

What it is: Growth of microorganisms, algae, and biofilms on heat transfer surfaces.

Common examples:

• Bacteria and biofilm in cooling water

• Algae in open cooling systems

• Fungi in humid or organic-rich environments

Why it happens:

• Warm water and nutrients present

• Stagnant or low-flow conditions

• Inadequate biocide dosing

• pH and oxygen levels favor growth

Where it occurs most:

• Cooling towers and open circuits

• Food and beverage exchangers

• Marine and offshore systems

• Data center cooling loops

Prevention:

• Biocide treatment (oxidizing and non-oxidizing)

• Maintain velocity to prevent stagnation

• UV or ozone treatment where applicable

• Regular cleaning and disinfection

• Close-loop systems with proper water treatment

H3: 4. Corrosion Fouling

What it is: Corrosion products deposit on heat transfer surfaces, and the corrosion process itself roughens the surface.

Common examples:

• Iron oxide (rust) from carbon steel piping

• Copper corrosion products in mixed-metal systems

• Galvanic corrosion from dissimilar metals

Why it happens:

• Material incompatibility with fluid

• Dissolved oxygen and chlorides present

• Galvanic couple between dissimilar metals

• Low pH or aggressive chemicals

Where it occurs most:

• Systems with carbon steel and copper together

• Seawater and chloride-rich environments

• High-oxygen circuits

• Poorly maintained closed loops

Prevention:

• Select compatible materials (316L, titanium, SMO 254)

• Use corrosion inhibitors

• Maintain pH and oxygen control

• Avoid dissimilar metal couples or use isolation

• Regular water quality monitoring

H3: 5. Chemical Reaction Fouling

What it is: Deposits form from chemical reactions between process fluids or between fluid and surface material.

Common examples:

• Polymerization of hydrocarbons at high temperature

• Coke formation in refinery service

• Decomposition of organic compounds

Why it happens:

• High surface temperature triggers reaction

• Reactive chemicals present

• Long residence time at temperature

Where it occurs most:

• Refinery and petrochemical exchangers

• High-temperature oil circuits

• Food processing (caramelization, protein denaturation)

Prevention:

• Control surface temperature

• Reduce residence time

• Use fouling-resistant surface treatments

• Add anti-coking or anti-polymerization additives

• Design for easy cleaning

H3: 6. Solidification Fouling

What it is: Fluid freezes or solidifies on cold surfaces.

Common examples:

• Wax deposition in crude oil

• Ice formation in chillers

• Freezing of process fluids at low temperature

Why it happens:

• Surface temperature below freezing or pour point

• Cold spots in the exchanger

• Incorrect temperature control

Where it occurs most:

• Chillers and refrigeration systems

• Crude oil and waxy fluids

• Cryogenic service

• Cold-side surfaces

Prevention:

• Maintain surface temperature above freezing point

• Use antifreeze or pour-point depressants

• Control coolant temperature carefully

• Design for even flow distribution

• Add temperature monitoring and alarms

How Fouling Affects Performance and Cost

Fouling degrades performance in three ways: lower U, higher ΔP, and reduced capacity.

H3: Effect on U-Value

H3: Effect on Pressure Drop

Deposits narrow the flow channels. A 0.2 mm deposit in a 3 mm plate channel reduces flow area by roughly 13%, which can raise ΔP by 20–40% depending on the flow regime.

H3: Cost Impact

Fouling increases cost in four ways:

1. Energy cost: Pumps work harder, chillers and heaters run longer

2. Cleaning cost: Chemicals, labor, and downtime

3. Production loss: Reduced capacity or shutdown

4. Equipment replacement: Shortened service life

For a typical industrial exchanger, fouling-related costs can represent 10–25% of total operating cost. In severe cases, it is higher.

Fouling Factors: How to Select Them

Fouling factors (Rf) are added to the U calculation to account for expected deposit growth. They are not a safety margin — they represent real thermal resistance.

H3: Typical Fouling Factors

H3: How to Use Fouling Factors

1. Add Rf to 1/Uclean for each side

2. Recalculate Udirty

3. Recalculate area: A = Q / (Udirty × LMTD × F)

4. Compare with clean area to see the fouling penalty

Example:

• Uclean = 4,500 W/m²·K

• Rf = 0.0002 each side (total 0.0004)

• 1/Udirty = 1/4,500 + 0.0004 = 0.000622

• Udirty = 1,608 W/m²·K

Area increases from 5.3 m² to about 14.8 m² for the same duty. That is the real cost of fouling.

H3: Common Error

Do not add fouling factors that are too high. Excessive Rf leads to oversized exchangers, higher cost, and poor control at low load. Use realistic values based on actual water quality and operating experience.

Design and Selection Rules to Reduce Fouling

Design decisions made early have the biggest impact on fouling. Once the exchanger is built, options are limited.

H3: Velocity Rules

Why velocity matters: Higher velocity increases shear stress at the wall, which prevents particles from settling and reduces biofilm attachment. But too high a velocity causes erosion and high ΔP.

H3: Temperature Rules

• Keep surface temperature below scaling threshold

• Avoid hot spots by ensuring even flow distribution

• For crystallization fouling, reduce temperature difference between fluid and surface

• For solidification fouling, keep surface above pour point or freezing point

H3: Geometry Rules

H3: Type Selection for Fouling Service

How to Prevent Fouling: Step-by-Step Program

Fouling prevention is a program, not a single action. Follow these steps.

Step 1 — Identify the fouling mechanism.
Analyze fluid chemistry, temperature, and operating history. Determine whether the dominant mechanism is scaling, particulate, biological, corrosion, chemical reaction, or solidification.

Step 2 — Set water quality targets.
Define limits for hardness, pH, chlorides, suspended solids, and biological activity. Monitor regularly.

Step 3 — Install upstream treatment.

• Filtration for particles

• Softening or demineralization for hardness

• Biocide dosing for biological growth

• Corrosion inhibitors for metal protection

• Scale inhibitors for crystallization

Step 4 — Design for adequate velocity.
Ensure flow velocity is above the settling threshold but below the erosion limit. Avoid dead zones and low-flow areas.

Step 5 — Select the right exchanger type.
Use wide-gap plates or STHE for dirty fluids. Use PHE only when fluid is clean and treatment is reliable.

Step 6 — Choose compatible materials.
Match wetted materials to fluid chemistry. Avoid galvanic couples.

Step 7 — Establish a cleaning schedule.
Base it on observed fouling rate. Monitor U and ΔP trends to predict when cleaning is needed.

Step 8 — Monitor performance continuously.
Track:

• U-value decline

• Pressure drop increase

• Flow rate and temperature changes

• Cleaning frequency

Step 9 — Clean before performance drops too far.
Early cleaning is easier and cheaper than late cleaning. Do not wait for a shutdown.

Step 10 — Review and improve.
After each cleaning, inspect deposits and adjust treatment, velocity, or schedule.

Cleaning Methods Compared

Cleaning method depends on exchanger type, fouling mechanism, and downtime tolerance.

H3: Chemical Cleaning (CIP)

H3: Mechanical Cleaning

H3: Manual Plate Opening (PHE)

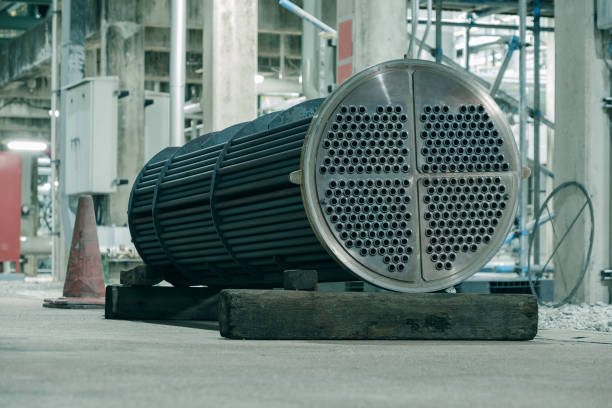

H3: Bundle Removal (STHE)

H3: Cleaning Method Selection Table

Material and Gasket Selection for Fouling Service

Material choice affects both fouling resistance and cleaning compatibility.

H3: Material Selection

H3: Gasket Selection (PHE)

H3: Surface Treatment Options

• Electropolishing: Smooths surface, reduces deposit adhesion

• Coatings: PTFE, epoxy, or ceramic coatings for aggressive fluids

• Surface hardening: For erosion resistance

• Anodizing: For aluminum components (limited heat exchanger use)

Comparison Tables

Table 1: Fouling Mechanisms and Prevention Summary

Table 2: PHE vs STHE Fouling Comparison

Fouling Prevention Checklist

Use this checklist to build a fouling prevention program.

• □

  Identify dominant fouling mechanism from fluid analysis

• □

  Set water quality targets (hardness, pH, chlorides, TSS)

• □

  Install upstream filtration (50–200 micron)

• □

  Implement water treatment (softening, biocide, inhibitors)

• □

  Verify flow velocity above settling threshold

• □

  Verify velocity below erosion limit

• □

  Select exchanger type suitable for fouling severity

• □

  Select materials compatible with fluid and cleaning chemicals

• □

  Select gaskets compatible with temperature and chemicals

• □

  Establish baseline U and ΔP at clean condition

• □

  Monitor U and ΔP trends weekly or monthly

• □

  Set cleaning trigger point (e.g., 15% U loss or 30% ΔP rise)

• □

  Plan CIP or mechanical cleaning schedule

• □

  Train operators on cleaning procedure and safety

• □

  Keep spare gaskets and plates/tubes on site

• □

  Review fouling history annually and adjust program

Common Mistakes and How to Avoid Them

1. Ignoring fouling during selection.
Fouling factors must be included in the U calculation from the start. Adding them later results in an undersized unit.

2. Using fouling factors that are too high.
Excessive Rf leads to oversized exchangers, higher cost, and poor control. Use realistic values.

3. Selecting a PHE for a dirty fluid.
Narrow plate channels block quickly. Use STHE or wide-gap PHE for solids-laden fluids.

4. Operating at low velocity.
Low velocity allows particles to settle and biofilm to grow. Maintain velocity above the settling threshold.

5. Skipping water treatment.
Untreated water causes scaling, corrosion, and biological growth. Treatment is cheaper than cleaning.

6. Cleaning too late.
Waiting until performance drops severely makes cleaning harder and more expensive. Clean at the trigger point.

7. Using the wrong cleaning chemical.
Incompatible chemicals can damage plates, gaskets, or tubes. Verify compatibility before cleaning.

8. Not monitoring performance.
Without U and ΔP trending, fouling is detected only when capacity fails. Monitor continuously.

9. Mixing dissimilar metals.
Galvanic corrosion accelerates fouling. Avoid dissimilar metal couples or use isolation.

10. Not keeping spare parts.
Without spare gaskets or plates, a fouling event becomes a long shutdown. Keep critical spares on site.

FAQ

1. What causes fouling in heat exchangers?
Fouling is caused by six main mechanisms: crystallization (scaling), particulate deposition, biological growth, corrosion products, chemical reaction, and solidification. Each mechanism requires a different prevention strategy.

2. How does fouling affect heat exchanger performance?
Fouling reduces the overall heat transfer coefficient (U), increases pressure drop, lowers capacity, and raises energy consumption. Severe fouling can force unplanned shutdowns.

3. What is a fouling factor?
A fouling factor (Rf) is a thermal resistance added to the U calculation to account for expected deposit growth. It is measured in m²·K/W and typically ranges from 0.0001 for clean water to 0.001 for heavy process fluids.

4. How do I prevent scaling in a heat exchanger?
Prevent scaling by softening or demineralizing water, controlling pH (typically 7.5–8.5), adding scale inhibitors, and keeping surface temperature below the scaling threshold.

5. Which heat exchanger is better for fouling service?
Shell and tube exchangers tolerate fouling better than plate heat exchangers because of larger flow channels and removable tube bundles. Wide-gap plate heat exchangers are an option for moderately dirty fluids.

6. How often should I clean my heat exchanger?
Cleaning frequency depends on fouling rate. Monitor U and ΔP trends and clean when U drops by 15% or ΔP rises by 30% from the clean baseline. Typical industrial exchangers need cleaning every 6–24 months.

7. What is the best way to clean a plate heat exchanger?
For light fouling, CIP (clean-in-place) with compatible chemicals is best. For heavy fouling, open the frame and clean plates manually. Always verify chemical compatibility with plate and gasket materials.

8. How do I clean a shell and tube heat exchanger?
Use tube brushing or hydrojetting for tube-side fouling. For shell-side fouling, remove the tube bundle and clean mechanically. Chemical cleaning can be used for light deposits.

9. Can fouling be completely prevented?
Fouling cannot be completely eliminated in most systems, but it can be significantly reduced through proper design, water treatment, velocity control, and cleaning schedules. The goal is to manage fouling, not eliminate it.

10. What is the most common fouling mistake?
The most common mistake is ignoring fouling during selection. Failing to include fouling factors in the U calculation leads to undersized exchangers and early performance problems.

11. How does velocity affect fouling?
Higher velocity increases wall shear stress, which prevents particle settling and reduces biofilm growth. However, excessive velocity causes erosion and high pressure drop. Maintain velocity within recommended ranges.

12. What materials resist fouling best?
Titanium, SMO 254, and duplex stainless steels resist corrosion fouling better than carbon steel or 316L in aggressive environments. Smooth surfaces such as electropolished stainless steel reduce deposit adhesion.

Key Takeaways

• Heat exchanger fouling has six main causes: scaling, particulate deposition, biological growth, corrosion, chemical reaction, and solidification.

• Fouling reduces U by 20–60%, increases pressure drop, and raises energy and maintenance costs.

• Fouling factors must be included in the U calculation from the start — not added later.

• Design decisions such as velocity, channel size, and material selection have the biggest impact on fouling resistance.

• Shell and tube exchangers tolerate fouling better than plate heat exchangers; wide-gap plates are an option for moderately dirty fluids.

• Water treatment, filtration, and biocide dosing prevent most fouling before it starts.

• Monitor U and ΔP trends continuously and clean at the trigger point, not after performance fails.

• Keep spare gaskets and plates or tubes on site to avoid long shutdowns.
