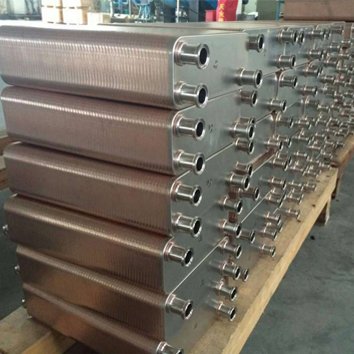

Heat Exchanger Nameplate and Model Identification: How to Read, Verify, and Replace Correctly

A heat exchanger nameplate and model identification is the fastest way to confirm what unit you have, what it was designed to do, and what you need to order as a replacement. The nameplate gives you design pressure, design temperature, flow rates, material of construction, and the manufacturer’s model code — but only if you know which fields matter and which ones are often misleading. This guide shows you how to read every field on a nameplate, decode common model numbering systems, identify a unit when the nameplate is missing or unreadable, and select a compatible replacement without over-specifying or under-specifying. It is written for maintenance engineers, procurement teams, and OEM buyers who need to get the right part the first time.

Quick Answer: Read the nameplate for design pressure, design temperature, flow rates, material, and model code. Verify these against actual operating conditions. If the nameplate is missing, measure nozzle sizes, plate/tube dimensions, and connection types, then cross-reference with manufacturer catalogs or a supplier’s engineering team. Never order a replacement using only the model number — always confirm the full data set.

Table of Contents

1. What Is a Heat Exchanger Nameplate and Why It Matters

2. How to Read a Heat Exchanger Nameplate: Field-by-Field Guide

3. How to Decode Heat Exchanger Model Codes

4. How to Identify a Heat Exchanger Without a Nameplate

5. Nameplate Data vs. Actual Operating Conditions

6. How to Select a Compatible Replacement

7. Step-by-Step: Nameplate-to-Order Workflow

8. Pre-Order Verification Checklist

9. Common Mistakes in Nameplate and Model Identification

10. FAQ

11. Key Takeaways

What Is a Heat Exchanger Nameplate and Why It Matters

A heat exchanger nameplate is a metal or plastic tag permanently attached to the unit that lists the design and operating parameters used to manufacture it. It is the primary reference for maintenance, spare parts ordering, and replacement selection. Without it, you are guessing — and guessing on a heat exchanger can mean poor thermal performance, premature fouling, pressure vessel non-compliance, or a unit that will not fit the piping.

The nameplate matters for three reasons:

• Safety and compliance. Design pressure and design temperature confirm the unit is rated for your system. In Europe, the Pressure Equipment Directive (PED) requires traceability. In North America, ASME U-stamp or equivalent applies to shell and tube units. A replacement without matching ratings may not pass inspection.

• Performance. Flow rates, heat duty, and temperature approach define whether the unit will actually do the job. A physically identical unit with a different plate corrugation or tube pitch will perform differently.

• Interchangeability. Nozzle sizes, connection types, footprint, and mounting dimensions determine whether a replacement drops in or requires piping modification.

How to Read a Heat Exchanger Nameplate: Field-by-Field Guide

A heat exchanger nameplate is read left to right, top to bottom, but the fields that matter most depend on the exchanger type. Below is a field-by-field explanation of what each item means and how to use it.

Standard Nameplate Fields

Nameplate Fields by Exchanger Type

How to Decode Heat Exchanger Model Codes

Model codes are manufacturer-specific, but most follow a structured logic. Decoding a model code lets you identify size, configuration, and sometimes materials without a catalog.

Common Model Code Structure

A typical plate heat exchanger model code looks like this:

ABC-100-50-HP
 |   |   |   |
 |   |   |   └── Suffix: HP = high pressure
 |   |   └────── Number of plates: 50
 |   └────────── Plate size / diameter code: 100
 └────────────── Manufacturer series: ABC

A typical shell and tube model code looks like:

ST-325-6-48-TEMA-BEM
 |   |  |  |    |
 |   |  |  |    └── TEMA type: BEM (bonnet, single pass shell, bonnet)
 |   |  |  └────── Tube length: 48 in
 |   |  └───────── Tube count: 6 (×10 = 60 tubes)
 |   └──────────── Shell diameter: 325 mm
 └────────────── Series: ST = shell and tube

What Each Segment Usually Means

Important Note

Model codes are not universal. A code from one manufacturer does not translate directly to another. When ordering a replacement, always provide the full nameplate data and physical measurements, not just the model number.

How to Identify a Heat Exchanger Without a Nameplate

If the nameplate is missing, corroded, or unreadable, you can still identify the unit by measuring key dimensions and comparing them to standard sizes. This is common with older units, imported equipment, or units that have been repainted.

Step-by-Step Identification Without a Nameplate

1. Determine the exchanger type. Is it gasketed plate, brazed plate, shell and tube, welded plate, or air-cooled? This narrows the search immediately.

2. Measure overall dimensions. Length, width, height, and connection centerlines.

3. Measure nozzle sizes and types. Flange standard (ANSI, DIN, JIS), thread type, or hose connection.

4. For plate exchangers: Measure plate width, height, and port diameter. Count the number of plates if the unit can be opened.

5. For shell and tube: Measure shell OD, tube length, tube count (if accessible), and tube OD/pitch.

6. Check connection orientation. Same-side, opposite-side, or diagonal.

7. Note material clues. Magnetic test for carbon steel vs. stainless steel. Visual inspection for titanium or copper alloys.

8. Photograph everything. Include close-ups of connections, plates/tubes, and any partial markings.

9. Contact a supplier with the data. A good supplier can cross-reference dimensions to standard models.

Comparison: Nameplate vs. Physical Measurement

Recommendation: If the nameplate is missing and the unit is critical, consider replacing it with a new unit sized from actual operating data rather than trying to reverse-engineer the old one.

Nameplate Data vs. Actual Operating Conditions

Nameplate data reflects design conditions, not necessarily current operating conditions. Systems change over time: flow rates are throttled, temperatures shift, and fluids are substituted. Always compare nameplate data to actual operating data before ordering a replacement.

Why They Diverge

How to Compare

1. Record actual operating data: inlet/outlet temperatures, flow rates, pressures, and fluid properties.

2. Calculate actual heat duty: Q = m × cp × ΔT (where Q = heat duty in kW, m = mass flow in kg/s, cp = specific heat in kJ/kg·K, ΔT = temperature difference in K).

3. Calculate LMTD: LMTD = (ΔT1 − ΔT2) / ln(ΔT1 / ΔT2).

4. Compare actual duty to nameplate duty. If actual duty is higher, the replacement must be larger.

5. Check temperature approach: the difference between outlet temperatures of the two streams. A closer approach requires more area.

How to Select a Compatible Replacement

Selecting a compatible replacement means matching form, fit, and function. It does not always mean matching the model number. In many cases, a newer, more efficient model can replace an older one — but only if the engineering checks out.

Selection Criteria

Replacement Options

Step-by-Step: Nameplate-to-Order Workflow

1. Photograph the nameplate. Take clear, well-lit photos from multiple angles.

2. Record all nameplate data. Transcribe every field into a spreadsheet.

3. Record actual operating data. Temperatures, flow rates, pressures, and fluid properties.

4. Measure physical dimensions. Nozzle sizes, connection types, overall dimensions, and mounting.

5. Identify the exchanger type. Plate, shell and tube, brazed, welded, or air-cooled.

6. Decode the model number. Use manufacturer catalogs or supplier cross-reference.

7. Compare nameplate vs. actual conditions. Identify any gaps.

8. Define the replacement specification. Duty, flow, pressure, temperature, material, connections, certification.

9. Request quotes from 2–3 suppliers. Include all data and photos.

10. Verify the quote. Confirm the supplier has interpreted the data correctly.

11. Confirm lead time and certification. Especially for PED, ASME, or UL requirements.

12. Place the order. Include a data sheet with the PO.

Pre-Order Verification Checklist

• □

  Nameplate photographed and transcribed

• □

  Exchanger type confirmed

• □

  Model number decoded or cross-referenced

• □

  Actual operating data recorded

• □

  Heat duty calculated

• □

  LMTD calculated

• □

  Temperature approach confirmed

• □

  Design pressure and temperature confirmed

• □

  Material compatibility verified

• □

  Pressure drop calculated

• □

  Connection size and type measured

• □

  Footprint and mounting dimensions measured

• □

  Certification requirements identified

• □

  Supplier quote reviewed against specification

• □

  Lead time confirmed

• □

  Spare parts availability checked

Common Mistakes in Nameplate and Model Identification

1. Ordering by model number alone.
Model numbers can change between production runs. Always include full nameplate data and physical measurements.

2. Assuming nameplate data equals operating data.
Systems change. Verify actual conditions before ordering.

3. Ignoring temperature approach.
A replacement with the same area but different plate pattern may not achieve the required approach.

4. Overlooking material compatibility.
A gasket that works with water may fail with a chemical. Always check fluid compatibility.

5. Forgetting certification requirements.
PED, ASME, and UL are not optional in regulated markets. Confirm before ordering.

6. Using the wrong pressure drop assumption.
Higher flow than design increases pressure drop. Recalculate.

7. Not measuring connections.
Flange standard and size must match. A 2″ ANSI flange is not the same as a 2″ DIN flange.

8. Ignoring fouling.
If the old unit fouled quickly, consider a replacement with wider channels or more area.

9. Assuming all plates are interchangeable.
Plate corrugation angle, thickness, and port size vary. They are not universal.

10. Skipping the data sheet.
A verbal order or a photo alone is not enough. Always provide a written specification.

FAQ

Q1: What is a heat exchanger nameplate?
A heat exchanger nameplate is a permanent tag that lists design pressure, design temperature, flow rates, material, model number, and other key data used to manufacture and identify the unit.

Q2: How do I read a heat exchanger model number?
Model numbers are manufacturer-specific but usually include series, size code, capacity code, pressure class, and material code. Cross-reference with the manufacturer’s catalog or a supplier’s engineering team.

Q3: Can I order a replacement using only the model number?
No. Always provide full nameplate data, actual operating conditions, and physical measurements. Model numbers alone are not sufficient.

Q4: What if the nameplate is missing or unreadable?
Measure nozzle sizes, plate or tube dimensions, connection types, and overall dimensions. Photograph the unit and send the data to a supplier for cross-reference.

Q5: How do I verify material compatibility?
Check the fluid composition, concentration, and temperature against material compatibility charts. Common materials include stainless steel 304/316, titanium, SMO 254, and various gasket elastomers.

Q6: What is temperature approach and why does it matter?
Temperature approach is the difference between the outlet temperatures of the two streams. A closer approach requires more heat transfer area and affects performance and cost.

Q7: How much does a replacement heat exchanger cost?
Cost depends on type, size, material, certification, and quantity. A small brazed plate unit may cost a few hundred USD, while a large shell and tube unit with exotic materials can cost tens of thousands. Lead time ranges from 1–2 weeks for standard units to 8–12 weeks for custom or certified units.

Q8: What certifications should I look for?
PED (Europe), ASME U-stamp (North America), UL (electrical components), and CE marking are common. Requirements depend on your market and application.

Q9: How do I calculate heat duty?
Use Q = m × cp × ΔT, where Q is heat duty in kW, m is mass flow in kg/s, cp is specific heat in kJ/kg·K, and ΔT is temperature difference in K.

Q10: Can I replace a gasketed plate exchanger with a brazed plate exchanger?
Sometimes, but not always. Brazed units have different pressure/temperature limits and cannot be opened for cleaning. Check duty, pressure, temperature, and fouling tendency.

Q11: What is the lead time for a custom heat exchanger?
Typically 4–12 weeks depending on design complexity, material availability, and certification requirements. Standard units may ship in 1–3 weeks.

Q12: How do I avoid fouling in a replacement unit?
Select a design with adequate velocity, wider channels if needed, and consider surface treatment or periodic cleaning. Do not oversize excessively — low velocity promotes fouling.

Key Takeaways

• Read the nameplate first. It gives you design pressure, temperature, flow rates, material, and model code — the foundation for any replacement.

• Decode the model number carefully. Model codes are manufacturer-specific and not universal.

• Verify nameplate vs. actual conditions. Systems change; always confirm actual duty, flow, and temperatures.

• Measure physical dimensions. Connections, footprint, and mounting determine fit.

• Check material compatibility. Fluid, gasket, and plate/tube material must all be compatible.

• Do not order by model number alone. Provide full data, photos, and a written specification.

• Confirm certification requirements. PED, ASME, UL, and CE are not optional in regulated markets.

• Use a checklist. A pre-order verification checklist prevents costly mistakes and downtime.
