Heat exchanger performance depends not only on the heat transfer unit itself but also on the valves and pumps that control fluid flow, pressure, and operating conditions. A correctly sized heat exchanger can still deliver poor performance if a pump cannot maintain the required flow rate, a control valve sticks, or an isolation valve does not open fully.

For maintenance engineers, plant managers, HVAC contractors, and purchasing teams, the challenge is to identify early warning signs before they lead to reduced heat transfer, excessive energy consumption, leakage, or unplanned shutdowns. Maintenance requirements also vary with the system design, process fluid, pump type, valve function, and operating environment.

This guide explains how to maintain heat exchanger valves and pumps, inspect common components, troubleshoot performance problems, establish preventive maintenance schedules, and decide when repair or replacement is appropriate. It covers industrial process systems, HVAC installations, chilled-water circuits, and other applications using plate, shell-and-tube, or liquid cooling heat exchangers.

Quick Answer: How Do You Maintain Heat Exchanger Valves and Pumps?

Maintain heat exchanger valves and pumps by inspecting for leaks, monitoring pressure and flow, checking vibration and temperature, verifying valve operation, servicing seals and bearings according to manufacturer instructions, and recording operating trends.

A practical maintenance programme should include:

  • Inspecting valve bodies, stems, seals, flanges, and connections for leakage.
  • Checking pump flow, discharge pressure, motor current, vibration, and operating temperature.
  • Monitoring differential pressure across the heat exchanger and comparing it with baseline values.
  • Testing control valves, actuators, and position feedback.
  • Inspecting strainers and filters for blockage.
  • Lubricating bearings only as specified by the pump manufacturer.
  • Checking alignment, coupling condition, and foundation fasteners where applicable.
  • Following approved isolation, lockout/tagout, and depressurization procedures before maintenance.
  • Recording findings and investigating recurring problems rather than repeatedly treating symptoms.

The correct inspection interval depends on operating severity, fluid characteristics, equipment design, manufacturer recommendations, and the consequences of failure.


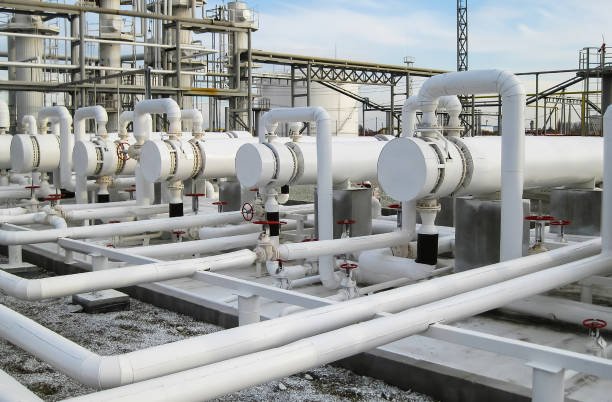

1. What Roles Do Valves and Pumps Play in a Heat Exchanger System?

Valves regulate, isolate, redirect, or prevent the reverse flow of fluids. Pumps provide the pressure difference needed to move liquids through the heat exchanger and connected piping.

Both components affect heat transfer indirectly by controlling the flow conditions under which the exchanger operates.

How Valves Affect Heat Exchanger Performance

Common valve types in heat exchanger systems include:

  • Isolation valves: Allow equipment to be separated from the process for maintenance.
  • Control valves: Regulate flow or temperature by adjusting the valve opening.
  • Balancing valves: Help establish the required flow distribution in hydronic systems.
  • Check valves: Prevent or limit reverse flow.
  • Pressure-relief valves: Protect systems against excessive pressure where required by the design.
  • Drain and vent valves: Support draining, venting, filling, and maintenance operations.

A partially closed isolation valve can restrict flow. A sticking control valve may cause unstable outlet temperatures. A leaking isolation valve may allow fluid to enter equipment that is supposed to be isolated.

The correct maintenance approach depends on the valve’s function. A control valve may require actuator and positioner checks, while a pressure-relief valve requires inspection and testing under the applicable maintenance programme.

How Pumps Affect Heat Exchanger Performance

A pump moves liquid through the system by generating the required head. Its actual operating point is determined by the pump curve and the system resistance.

Important pump parameters include:

  • Flow rate, typically measured in m³/h or L/min
  • Head, measured in metres of liquid
  • Suction and discharge pressure
  • Differential pressure across the pump
  • Motor current and power consumption
  • Vibration and bearing temperature
  • Seal condition and leakage
  • Net positive suction head requirements

If pump flow falls below the required level, heat transfer performance may decline. In some applications, low flow can also create local overheating, unstable control, freezing risk, or other process-specific problems.

However, poor heat exchanger performance does not automatically indicate pump failure. A blocked strainer, incorrect valve position, air trapped in the system, fouling, or a control problem may produce similar symptoms.

Problem, Cause, and Solution

Problem: A heat exchanger cannot achieve the required outlet temperature.

Why it happens: The pump may not deliver the design flow, a valve may restrict circulation, or the exchanger may be fouled.

How to solve it: Compare actual flow, pressure, valve position, and exchanger differential pressure with the commissioning baseline. Check the control system and process conditions before deciding which component needs maintenance.

What to provide to the supplier:

  • Heat exchanger type and model
  • Pump type and model
  • Valve types and sizes
  • Fluid type and operating temperature
  • Required and actual flow rate
  • Suction and discharge pressure
  • Heat exchanger inlet and outlet temperatures
  • Relevant alarms or operating trends

Example: In a chilled-water application, insufficient flow through a plate heat exchanger may cause unstable outlet temperature control. Before replacing the pump, verify that the control valve is opening correctly and that the strainer is not obstructed.


2. How Should You Maintain Valves Used in Heat Exchanger Systems?

Heat exchanger valves should be maintained according to their function, construction, operating conditions, and manufacturer instructions. Routine checks should focus on leakage, smooth operation, correct positioning, pressure integrity, and the condition of actuators and seals.

Not every valve requires the same maintenance procedure. A manually operated ball valve, a modulating control valve, and a pressure-relief valve have different failure modes and testing requirements.

Inspect Valve Bodies, Connections, and Seals

During routine inspections, look for:

  • Fluid leakage around the valve stem or packing
  • Leakage at flange connections
  • Corrosion, erosion, or visible mechanical damage
  • Loose or damaged supports and fasteners
  • Unusual vibration or movement
  • Signs of external overheating or insulation damage
  • Deposits around joints that may indicate leakage

The absence of visible leakage does not prove that a valve is functioning correctly. Internal leakage across a closed valve may occur without an obvious external sign.

For valves handling hot water, steam, refrigerants, chemicals, or other hazardous fluids, follow the site’s inspection and safety procedures.

Practical recommendation: Record the valve identification number, observed condition, operating position, and any corrective action. Consistent records help identify deterioration that a single inspection might miss.

Maintain Isolation Valves

Isolation valves are used to separate equipment from the process.

Maintenance may include checking the operating mechanism, stem condition, external seals, and ability to reach the intended position.

Do not force a stuck valve. Excessive operating force can damage the stem, actuator, seating surfaces, or internal components.

Where the operating procedure permits, verify that the valve travels through its intended range. Avoid unnecessary operation of valves where cycling could interrupt critical service or create process risks.

Important: A closed isolation valve must not automatically be assumed to provide a safe isolation boundary. For maintenance, follow the site’s approved isolation procedure and verify that pressure and hazardous-fluid risks have been controlled.

Maintain Control Valves and Actuators

Control valves regulate flow, pressure, or temperature in response to a control signal.

Common problems include:

  • Sticking or sluggish valve movement
  • Unstable outlet temperature
  • Excessive control oscillation
  • Position feedback that does not match actual travel
  • Actuator air or electrical supply problems
  • Leakage through the valve when it should be closed
  • Incorrect control settings

A systematic check should cover the control signal, actuator supply, position feedback, valve travel, and process response.

For pneumatic actuators, inspect the air supply and tubing. For electric actuators, follow the manufacturer’s electrical isolation and inspection instructions.

Positioner calibration, actuator adjustment, and control-loop tuning should be carried out by qualified personnel using the correct procedures.

Maintain Check Valves

Check valves prevent or limit reverse flow.

Possible warning signs include:

  • Reverse flow when the pump stops
  • Water hammer or impact noise
  • Abnormal pressure changes
  • Failure to open fully
  • Internal leakage or sticking

Deposits, damaged seating surfaces, incorrect installation orientation, and worn internal components can interfere with operation.

The appropriate inspection method depends on the check valve design and whether internal access is possible. Do not assume every check valve can be serviced in place.

Maintain Pressure-Relief Valves

Pressure-relief valves protect equipment against excessive pressure under defined conditions.

Their maintenance must follow the applicable design requirements, manufacturer instructions, and regulatory obligations. Inspection or testing may require specialized equipment and qualified personnel.

Do not adjust the set pressure or block the discharge path as a routine troubleshooting measure.

Where a relief valve operates unexpectedly, investigate the underlying pressure condition as well as the valve itself.

Valve Maintenance Checklist

ComponentWhat to inspectCommon warning signsRecommended response
Isolation valveStem, body, packing, travelLeakage, sticking, incomplete closureInspect and service according to the manufacturer’s procedure
Control valveTravel, trim, actuator, position feedbackUnstable temperature, sluggish responseCheck signal, actuator, and valve operation
Balancing valveSetting, pressure difference, flowUneven flow, poor system balanceVerify the required flow and balancing procedure
Check valveInternal movement and sealingReverse flow, impact noiseInspect for sticking, damage, or incorrect installation
Pressure-relief valveCondition, discharge path, test recordsUnexpected operation, leakageFollow the specified inspection and testing programme
Drain or vent valveOperation and sealingLeakage, trapped air, inability to drainInspect and verify safe operation

3. How Should You Maintain Pumps Connected to Heat Exchangers?

Pump maintenance should focus on hydraulic performance, vibration, temperature, leakage, lubrication, alignment, and motor condition. Establishing normal operating values during commissioning or after a verified overhaul makes it easier to identify deterioration.

Pump maintenance varies by design. Centrifugal pumps, positive-displacement pumps, and specialized refrigerant or process pumps should not be maintained using one generic procedure.

Monitor Pump Flow and Pressure

A pump may continue running while delivering less flow than the system requires.

Possible causes include:

  • Blocked suction strainer
  • Incorrect valve position
  • Air entrainment
  • Impeller wear or damage
  • Excessive system resistance
  • Pump operation outside its intended operating range
  • Incorrect rotation, where relevant
  • Changes in fluid viscosity or temperature
  • Internal recirculation or other hydraulic problems

Measure flow and pressure using appropriate instruments and compare the results with the pump curve and design conditions.

For centrifugal pumps, a pump’s differential pressure alone does not establish its flow rate unless the relevant hydraulic conditions and performance relationship are known.

Practical recommendation: Record suction pressure, discharge pressure, flow, speed, and motor current where these measurements are available. Investigate changes rather than adjusting the system based on a single reading.

Inspect Mechanical Seals and Packing

Mechanical seals help prevent process fluid from leaking along the rotating shaft. Some pumps use gland packing instead.

Maintenance checks should consider:

  • Leakage rate
  • Seal chamber condition
  • Unusual noise
  • Signs of overheating
  • Vibration
  • Flushing or cooling arrangements, if fitted
  • Seal-support system condition, where applicable

A small amount of leakage may be permitted by the design of certain packing arrangements, but mechanical seals generally have different leakage expectations. Follow the equipment manufacturer’s limits rather than applying one standard to every pump.

Never tighten packing or adjust a seal arrangement while the equipment is operating unless the manufacturer explicitly permits the procedure and a qualified person has assessed the risks.

Check Bearings, Lubrication, and Alignment

Bearing wear and poor alignment can increase vibration, heat generation, and energy consumption.

Maintenance may include:

  • Monitoring bearing temperature and vibration
  • Checking lubricant condition where specified
  • Following the correct lubrication interval
  • Inspecting coupling condition
  • Verifying shaft alignment after relevant maintenance
  • Checking the foundation and mounting fasteners
  • Inspecting guards and associated mechanical components

Do not over-lubricate bearings. Excess lubricant can increase temperature and damage some bearing arrangements. Use the lubricant type, quantity, and interval specified by the manufacturer.

Alignment should be checked using an appropriate method, particularly after pump removal, coupling replacement, or foundation work.

Check for Cavitation and Suction Problems

Cavitation can occur when local pressure falls sufficiently for vapor bubbles to form and subsequently collapse. It may cause noise, vibration, erosion, and reduced hydraulic performance.

Possible contributing factors include:

  • Insufficient suction pressure
  • Excessive suction-line resistance
  • Blocked strainers
  • Excessive fluid temperature
  • Inadequate available net positive suction head (NPSH)
  • Incorrect pump selection or operating conditions

Cavitation-like symptoms can also result from entrained gas, mechanical vibration, or other hydraulic problems.

Check the pump’s NPSH requirements against the available system conditions. The required and available NPSH should be evaluated at the actual operating point, with an appropriate margin according to the design criteria.

Pump Maintenance Checklist

Component or parameterInspection focusWarning signs
Flow rateCompare with required operating flowReduced circulation or unstable heat transfer
Suction pressureCheck against normal operating conditionsExcessive vacuum or unexpected pressure loss
Discharge pressureCompare with the pump curve and baselineAbnormal pressure changes
Mechanical sealCheck for leakage and overheatingLeakage beyond permitted limits
BearingsMonitor temperature, vibration, and lubricationRising temperature, noise, or vibration
Coupling and alignmentInspect after maintenance or abnormal vibrationMisalignment, wear, loose components
MotorCheck current, temperature, and electrical conditionOverload, overheating, abnormal current
FoundationInspect mounting and fastenersLooseness or excessive movement
StrainerCheck differential pressure or blockage indicatorsRestricted suction or reduced flow

4. How Do You Troubleshoot Common Heat Exchanger Valve and Pump Problems?

The most efficient troubleshooting approach is to compare actual operating conditions with the system’s normal baseline, then test the most likely causes in a controlled sequence.

Replacing a pump or valve without confirming the cause can increase cost while leaving the original problem unresolved.

Problem 1: Heat Exchanger Flow Is Too Low

Possible causes:

  • A valve is partially closed.
  • A strainer is blocked.
  • The pump is not delivering the required flow.
  • Air is trapped in the system.
  • The system resistance has increased.
  • The heat exchanger passages are fouled or obstructed.

How to troubleshoot:

  1. Confirm the flow measurement and operating demand.
  2. Verify valve positions and control commands.
  3. Check strainer condition and available pressure measurements.
  4. Compare pump operating conditions with the pump curve.
  5. Review heat exchanger differential pressure.
  6. Investigate air entrainment and other system restrictions.

Do not immediately increase pump speed or replace the pump. Excessive flow can exceed pressure-drop limits, increase energy consumption, or create problems elsewhere in the system.

Problem 2: Heat Exchanger Outlet Temperature Is Unstable

Possible causes:

  • A control valve is sticking.
  • The actuator or positioner is malfunctioning.
  • The flow rate is fluctuating.
  • The temperature sensor is inaccurate.
  • The controller is incorrectly configured.
  • The thermal load or inlet temperature is changing.

How to troubleshoot:

Compare the control signal, actual valve position, flow rate, inlet temperature, and outlet temperature.

If the valve position changes but the process response does not match expectations, investigate the valve, actuator, flow path, and heat exchanger condition.

Do not assume that replacing the control valve will solve a temperature problem caused by a faulty sensor or unstable pump flow.

Problem 3: Pump Noise or Vibration Has Increased

Possible causes:

  • Cavitation or insufficient suction conditions
  • Bearing deterioration
  • Misalignment
  • Mechanical looseness
  • Air or gas entrainment
  • Operation outside the intended pump range
  • Impeller or internal component damage

How to troubleshoot:

Compare vibration and noise with the established baseline. Check suction conditions, flow, pressure, bearing temperature, and alignment history.

If vibration rises suddenly, the pump overheats, or mechanical damage is suspected, follow the site’s safe shutdown procedure rather than continuing operation solely to collect more data.

Problem 4: Valve Leakage Has Increased

Possible causes:

  • Worn packing or seals
  • Damaged valve seats
  • Corrosion or erosion
  • Loose or damaged connections
  • Incorrect operating conditions
  • Thermal cycling or mechanical stress

How to troubleshoot:

Identify whether the leakage is external or internal. External leakage requires immediate risk assessment based on fluid properties, temperature, and pressure.

Internal leakage may require an approved isolation or seat-leakage test.

Do not tighten fasteners or dismantle the valve while the system remains pressurized.

Problem 5: Pump Energy Consumption Has Increased

Possible causes:

  • Increased system resistance
  • Excessive flow
  • Poor pump efficiency
  • Mechanical friction
  • Control valves creating unnecessary throttling losses
  • Changes in fluid properties
  • Pump wear or incorrect operation

How to troubleshoot:

Compare electrical power, flow, differential pressure, pump speed, and operating hours with baseline data.

If a variable-speed drive is installed, verify the control settings and actual speed. Do not assume that reducing speed is always appropriate; the system must still meet its process and minimum-flow requirements.

Troubleshooting Table

SymptomPotential causesFirst checksWhen specialist support may be needed
Low heat exchanger flowValve restriction, blocked strainer, pump problem, foulingFlow, valve position, pressure readingsPump performance testing or internal inspection
Unstable outlet temperatureControl valve, actuator, sensor, variable loadControl signal, actual position, inlet conditionsControl-loop diagnosis or valve overhaul
High pump vibrationCavitation, misalignment, bearing wear, loosenessSuction conditions, vibration trend, mountingAlignment, vibration analysis, or pump disassembly
Valve leakageSeal wear, damaged seat, corrosion, connection faultLeakage location and process conditionsSeat inspection, pressure testing, or valve replacement
Rising energy consumptionExcessive flow, throttling, wear, changed system resistancePower, flow, pressure, speedPump-system efficiency assessment
Increasing exchanger differential pressureFouling, blocked passages, flow imbalanceDifferential pressure, flow, strainer conditionExchanger inspection or cleaning assessment

5. How Often Should Heat Exchanger Valves and Pumps Be Maintained?

There is no universal maintenance interval for every heat exchanger valve and pump. The appropriate schedule depends on operating severity, fluid cleanliness, equipment criticality, manufacturer recommendations, and historical failure data.

A system handling clean chilled water under stable conditions may require a different schedule from one handling abrasive slurry, corrosive process fluids, or high-temperature liquids.

Example Preventive Maintenance Schedule

The following is a starting framework, not a mandatory interval. Adjust it to the manufacturer’s instructions, site risk assessment, operating history, and applicable regulations.

FrequencySuggested checksPurpose
Each operating shift or daily, where justified by riskCheck alarms, abnormal noise, visible leakage, and key operating readingsIdentify sudden changes
Weekly or at a risk-based intervalReview flow, pressure, temperature, vibration, and valve behaviorDetect developing problems
Monthly or at a risk-based intervalInspect accessible connections, supports, actuator condition, and maintenance recordsIdentify deterioration and recurring faults
At planned maintenance intervalsPerform detailed inspections, lubrication where specified, alignment checks, and valve functional checksMaintain reliability
During shutdownsInspect internal components where justified, service seals, and carry out specified testsAssess wear and confirm equipment condition
After repair or overhaulVerify assembly, alignment, leakage, and functional performanceConfirm readiness for service

Critical pressure-relief devices, hazardous-fluid valves, and regulated equipment may require more specific inspection and testing schedules.

Use Condition-Based Maintenance Where Practical

Condition-based maintenance uses measured equipment condition to determine when intervention is needed.

Useful monitoring data include:

  • Pump vibration
  • Bearing temperature
  • Motor current and power
  • Flow rate
  • Suction and discharge pressure
  • Heat exchanger differential pressure
  • Inlet and outlet temperatures
  • Control valve position and response
  • Leakage observations

Trend data are more informative than isolated readings. For example, a gradual rise in pump vibration over several weeks may warrant investigation even if the latest reading remains below an alarm threshold.

Thresholds should be based on equipment specifications, commissioning data, applicable standards, and qualified engineering assessment.

Maintenance Records to Keep

For each pump and valve, record:

  • Equipment identification and model
  • Manufacturer’s maintenance instructions
  • Installation and commissioning information
  • Normal operating conditions
  • Inspection dates and findings
  • Repairs and replacement parts
  • Lubricant type and service history, where applicable
  • Vibration and temperature trends
  • Valve test results
  • Reported failures and corrective actions

These records help determine whether a recurring problem is caused by operating conditions, component deterioration, incorrect maintenance, or equipment selection.


6. How Do You Choose Replacement Valves and Pumps for a Heat Exchanger System?

Replacement components should match the system’s hydraulic, mechanical, thermal, and control requirements. Physical fit alone does not establish suitability.

An incorrectly selected valve can create excessive pressure drop or poor control. An incorrectly selected pump may fail to deliver the required flow, consume excessive energy, or operate outside its intended range.

Pump Selection Factors

When selecting a replacement pump, review:

  • Required flow rate
  • Total dynamic head
  • Fluid density and viscosity
  • Fluid temperature
  • Chemical compatibility
  • Required materials of construction
  • Pump efficiency and motor power
  • Available NPSH and pump NPSH requirements
  • Minimum and maximum allowable flow
  • Operating hours and control method
  • Mechanical seal and bearing requirements
  • Connection sizes and installation dimensions

The required pump duty must be evaluated against the pump curve and system curve. A pump with a larger motor is not automatically a better replacement.

Valve Selection Factors

When selecting a replacement valve, review:

  • Valve function: isolation, control, balancing, check, or pressure relief
  • Nominal size and connection type
  • Pressure and temperature ratings
  • Fluid compatibility
  • Required flow coefficient, such as Cv or Kv, where relevant
  • Allowable pressure drop
  • Control range and shutoff requirements
  • Actuator type and available power supply
  • Fail-safe position for actuated control valves
  • Applicable design standards
  • Maintenance and spare-part requirements

Control valves require particular attention to sizing. An oversized control valve may operate over a small portion of its travel, reducing controllability and contributing to unstable operation.

Pressure-relief valve selection and replacement must follow the applicable system design and regulatory requirements.

Replacement Decision Table

Selection factorWhy it mattersInformation to confirm
Flow rateDetermines required circulation capacityNormal, minimum, and maximum flow
Pump headDetermines whether the pump can overcome system resistancePressure losses, elevation, and operating conditions
Fluid propertiesAffect hydraulic performance and material selectionDensity, viscosity, temperature, and composition
Valve functionDetermines the correct valve designIsolation, control, balancing, check, or relief
Pressure ratingDetermines mechanical suitabilityDesign pressure and applicable rating
Temperature ratingAffects material and seal suitabilityMinimum and maximum design temperatures
Material compatibilityHelps prevent corrosion and degradationWetted metals, seals, gaskets, and process chemistry
Pressure dropAffects energy consumption and control performancePermitted pressure loss
Control requirementsDetermine actuator and valve behaviorControl signal, range, fail position, and response
Installation dimensionsAffect compatibility with existing pipingFace-to-face dimensions, connections, and available space
Standards and documentationSupport safe installation and complianceApplicable codes, drawings, certificates, and test documents

Should You Repair or Replace a Valve or Pump?

Repair may be appropriate when the equipment is fundamentally suitable and the fault can be corrected economically.

Replacement may be preferable when:

  • Major components are severely worn or damaged.
  • Spare parts are no longer available.
  • The component is incorrectly sized for current operating requirements.
  • Corrosion or erosion is extensive.
  • Repeated repairs have not resolved the problem.
  • Efficiency improvements justify the replacement cost.
  • Safety or regulatory requirements cannot be met by continued operation.

Compare the full cost of each option, including labor, downtime, spare parts, energy consumption, expected reliability, and future maintenance.


7. What Common Maintenance Mistakes Should You Avoid?

Several recurring mistakes can reduce equipment life or create avoidable operating risks.

Mistake 1: Replacing the Pump Before Checking the System

Why it causes problems: Low flow may be caused by a closed valve, blocked strainer, fouled heat exchanger, or incorrect control settings rather than pump failure.

What to do instead: Check the entire hydraulic path and compare measured operating conditions with design data before replacing the pump.

Mistake 2: Ignoring Pump Operating Conditions

Why it causes problems: A pump may experience cavitation, vibration, excessive recirculation, or reduced efficiency when operated outside its intended range.

What to do instead: Review the pump curve, system curve, minimum-flow requirements, and NPSH conditions.

Mistake 3: Lubricating Bearings Without Checking Manufacturer Requirements

Why it causes problems: Incorrect lubricant, quantity, or interval can damage bearings or raise operating temperature.

What to do instead: Follow the manufacturer’s specified lubricant and procedure. Do not assume that every bearing requires frequent grease application.

Mistake 4: Forcing a Stuck Valve

Why it causes problems: Excessive force may damage the stem, actuator, seating surfaces, or internal mechanism.

What to do instead: Determine why the valve is stuck and follow the approved servicing procedure.

Mistake 5: Ignoring Small Leaks

Why it causes problems: A small leak may indicate seal deterioration, corrosion, or a developing connection fault. The consequences depend on the fluid, temperature, and pressure.

What to do instead: Assess the hazard, record the leakage, and repair it within the appropriate timeframe. Treat hazardous-fluid leakage as a safety issue rather than a routine housekeeping problem.

Mistake 6: Using One Maintenance Schedule for Every Component

Why it causes problems: Different valve and pump designs have different failure modes and maintenance requirements.

What to do instead: Base the schedule on manufacturer guidance, operating severity, equipment criticality, and condition data.

Mistake 7: Failing to Check the Control System

Why it causes problems: A valve may be mechanically sound but receive an incorrect signal because of a sensor, wiring, actuator, or controller problem.

What to do instead: Verify the signal, actual valve position, and process response before ordering replacement parts.

Mistake 8: Performing Maintenance Without Verified Isolation

Why it causes problems: Residual pressure, hot fluid, hazardous chemicals, electricity, or unexpected flow can cause serious injury.

What to do instead: Follow the site’s approved isolation, lockout/tagout, depressurization, draining, and verification procedures before starting work.

Mistake 9: Failing to Record Maintenance Findings

Why it causes problems: Repeated faults become harder to diagnose when measurements and repairs are not documented.

What to do instead: Keep equipment-specific records and use trend data to identify recurring failures and deterioration.


8. What Affects the Cost of Maintaining Heat Exchanger Valves and Pumps?

Maintenance cost depends on equipment type, operating conditions, repair scope, component availability, labor, downtime, and the consequences of failure.

The cheapest immediate repair is not necessarily the lowest-cost option over the equipment’s service life.

Main Maintenance Cost Factors

Cost factorEffect on maintenance costWhat to evaluate
Pump design and sizeAffects labor, spare parts, and service requirementsPump type, duty, materials, and access
Valve designDetermines inspection and servicing complexityValve function, size, actuator, and internal construction
Component conditionDetermines whether adjustment, repair, or replacement is requiredWear, corrosion, leakage, and damage
Spare-part availabilityAffects lead time and procurement costSeal kits, bearings, trim, actuators, and OEM parts
Labor and specialist supportAdds cost for inspection, overhaul, testing, and alignmentRequired qualifications and work scope
Production downtimeMay be a major cost in continuous-process plantsShutdown duration and available redundancy
Energy consumptionAffects long-term operating costsPump efficiency, control losses, and operating hours
Fluid characteristicsMay increase corrosion, wear, or cleaning requirementsAbrasive, corrosive, viscous, or high-temperature fluids
Testing and documentationMay be required for safe return to serviceInspection, calibration, and test records
International procurementAffects delivery time and landed costShipping, packaging, customs, and import requirements

Preventive Maintenance vs. Reactive Repair

Preventive maintenance involves planned inspections and servicing intended to reduce the probability of failure.

Reactive maintenance addresses a problem after it occurs.

A practical maintenance strategy usually combines scheduled tasks with condition monitoring and corrective work. Critical components may justify more intensive monitoring because an unexpected failure could interrupt production or create a safety hazard.

However, maintenance itself also has a cost. Unnecessary disassembly or replacing components solely because they have reached an arbitrary age can waste resources.

The goal is to select a maintenance approach that balances reliability, safety, operating cost, and the consequences of failure.


Heat Exchanger Valve and Pump Maintenance Checklist

Use this checklist as a starting point for a site-specific maintenance plan. Adapt it to the equipment manuals, operating conditions, safety requirements, and applicable regulations.

System Operating Conditions

  • Record normal flow rate and operating pressure.
  • Record heat exchanger inlet and outlet temperatures.
  • Establish normal differential pressure across the exchanger.
  • Review pump speed and motor current where available.
  • Check system alarms and operating trends.
  • Confirm that operating conditions remain within equipment limits.

Valve Inspection

  • Inspect valve bodies and connections for visible leakage.
  • Check accessible stems, packing, and seals.
  • Verify valve position and operating response.
  • Check control valve actuators and position feedback.
  • Review balancing valve settings where applicable.
  • Inspect check valves if reverse flow or impact noise is suspected.
  • Verify pressure-relief valve inspection and test records.
  • Record defects and corrective actions.

Pump Inspection

  • Check flow and pressure against expected values.
  • Inspect for abnormal noise and vibration.
  • Monitor bearing temperature.
  • Check mechanical seal or packing condition.
  • Review lubrication requirements and service history.
  • Inspect couplings and guards.
  • Check alignment when justified by vibration, repair, or maintenance history.
  • Review motor current, power, and temperature.
  • Investigate suction restrictions and possible cavitation.
  • Confirm that the pump operates within its intended range.

Maintenance Planning

  • Identify equipment criticality and failure consequences.
  • Follow manufacturer-recommended inspection intervals.
  • Define condition-monitoring limits and escalation procedures.
  • Maintain an inventory of critical spare parts.
  • Record model numbers and component specifications.
  • Establish safe isolation and return-to-service procedures.
  • Document repairs, inspections, and test results.
  • Review recurring failures and update the maintenance plan.

Frequently Asked Questions About Heat Exchanger Valves and Pumps

1. How often should heat exchanger pumps be serviced?

Heat exchanger pumps should be serviced according to manufacturer recommendations, operating severity, and condition-monitoring results. Routine checks may be frequent, while internal inspections and overhauls are scheduled according to equipment condition and maintenance requirements.

2. What causes low flow through a heat exchanger?

Low flow can result from pump problems, partially closed valves, blocked strainers, air in the system, excessive hydraulic resistance, or fouled heat exchanger passages. Check the flow path and operating measurements before replacing equipment.

3. Why does a heat exchanger pump make unusual noise?

Unusual pump noise may indicate cavitation, air entrainment, bearing wear, misalignment, mechanical looseness, or operation outside the intended range. Compare the symptoms with operating data and follow the site’s safe response procedure if a serious fault is suspected.

4. How can I tell if a heat exchanger control valve is faulty?

Possible signs include unstable outlet temperatures, sluggish movement, incorrect position feedback, poor flow regulation, and leakage when closed. Check the control signal, actuator, valve travel, and process conditions to distinguish mechanical faults from control-system problems.

5. Can a faulty valve reduce heat exchanger efficiency?

Yes. A valve that restricts flow, leaks internally, or fails to regulate the process correctly can reduce heat exchanger performance or increase energy consumption. The effect depends on the valve’s function and its location in the system.

6. What is the difference between a control valve and an isolation valve?

A control valve regulates flow or another process variable during operation. An isolation valve separates equipment from the process for maintenance or other operating purposes. Some valve designs can perform multiple functions, but their suitability must be confirmed for the intended service.

7. What causes cavitation in a heat exchanger pump?

Cavitation occurs when local liquid pressure falls sufficiently for vapor bubbles to form and then collapse. Causes may include inadequate suction pressure, excessive suction-line losses, high fluid temperature, or insufficient available NPSH.

8. Should pump bearings be lubricated during every maintenance visit?

No. Bearing lubrication should follow the pump manufacturer’s requirements. Some bearings require periodic lubrication, while others have different arrangements. Incorrect lubricant or excessive lubrication can damage bearings.

9. How do I know whether a pump should be repaired or replaced?

Repair is often appropriate when the pump remains suitable for the application and the fault can be corrected economically. Replacement may be preferable when major components are damaged, spare parts are unavailable, repeated repairs fail, or the existing pump cannot meet current operating requirements.

10. What information is needed to select a replacement pump?

Provide the required flow rate, total dynamic head, fluid properties, operating temperature, material requirements, NPSH conditions, motor power and supply, connection dimensions, and installation constraints. Final selection should be confirmed against the pump and system curves.

11. What information is needed to replace a heat exchanger valve?

Provide the valve function, size, pressure and temperature ratings, connection type, fluid composition, material requirements, required flow coefficient where applicable, actuator details, control requirements, and applicable standards.

12. Can I maintain a pump while it is running?

Some external monitoring and non-intrusive inspections can be performed while equipment is operating if the site’s risk assessment and procedures permit them. Opening the pump, adjusting components, or performing intrusive maintenance requires the specified isolation and safety controls.

13. Why is heat exchanger differential pressure increasing?

An increase in differential pressure may indicate fouling, blockage, changing flow conditions, or an instrument problem. Compare pressure drop at equivalent flow conditions and investigate strainers, valves, and the exchanger before deciding on corrective action.

14. How can I reduce heat exchanger pump energy consumption?

Start by checking whether the pump operates near its appropriate duty point, whether the system has unnecessary restrictions, and whether the control strategy is suitable. Consider pump efficiency, variable-speed control, and system resistance, while maintaining minimum-flow and process requirements.

15. What spare parts should be kept for heat exchanger valves and pumps?

Potential spare parts include pump seals, bearings, gaskets, coupling elements, valve packing, valve seals, actuator components, and selected internal parts. The appropriate inventory depends on equipment criticality, failure history, supplier lead time, and the availability of compatible replacements.


Choosing a Heat Exchanger Valve and Pump Supplier

Selecting a suitable replacement component requires more than matching the connection size or ordering a product with a similar model number. Compatibility with the system’s operating conditions, fluid, control requirements, and installation arrangement must also be confirmed.

When evaluating a supplier or export partner, consider the following:

  • Technical communication: Can the supplier review the application and identify missing specifications before quoting?
  • Product sourcing: Can the supplier coordinate with appropriate manufacturers for the required pump, valve, or spare part?
  • Material compatibility: Can the proposed wetted materials and seals be checked against the process fluid and temperature?
  • Documentation: Can the supplier provide the available technical drawings, datasheets, manuals, and applicable test documentation?
  • Quality control: Are product identification, inspection requirements, and agreed acceptance criteria clearly documented?
  • Customization: Can dimensional, connection, material, or control requirements be communicated to the manufacturing partner?
  • Packaging and export coordination: Are product protection, shipping arrangements, documentation, and destination requirements addressed?
  • After-sales support: Is there a clear process for handling technical questions, compatibility concerns, and replacement-part inquiries?

We work closely with qualified manufacturing partners and engineering teams to provide product sourcing, technical coordination, customization, quality control, and international export support.

For international buyers, clear specifications and documented operating requirements help reduce the risk of receiving an unsuitable replacement component.

The final selection should be confirmed through the relevant engineering checks and manufacturer’s documentation, particularly for critical systems, hazardous fluids, and pressure-containing equipment.

Need Help Selecting Heat Exchanger Valves, Pumps, or Spare Parts?

Choosing the correct valve or pump can help maintain stable flow, reliable temperature control, and efficient heat transfer. The right maintenance strategy can also reduce avoidable downtime and help identify developing problems before they lead to equipment failure.

Leave a Reply

Your email address will not be published. Required fields are marked *
